The unified operation concept of JUNKER grinder (2)

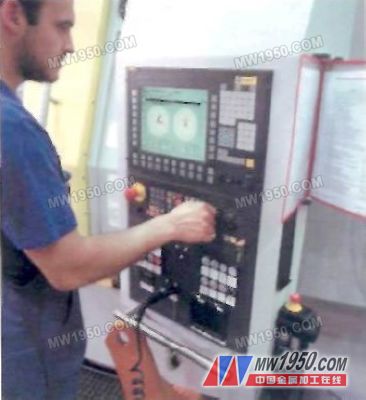

Figure 2: Standardized solution for integrated B&B: EJOP with operator panel OP12, machine control panel and user-specific printer panel Integrated all-in-one operating platform “Siemens have been involved in the early stages of our implementation and have recommended their Simatic ProTool/Pro systems for design planning and visual monitoring,†explains Johannes Schatzler. “This software The package is connected to the operator panel of the HMI series made by Siemens, which is very familiar to us. It has a range of functions that we require and is fairly easy to expand." In this way, based on ProTool/Pro and OPC, an operating platform that can integrate all grinding tasks and is independent of the CNC-control system in the switchgear is available for all future machine tools. In addition, you can add your own intelligent OCX components (Active X Controls) – especially for the process functions and process cycles that are essential for the grinding process. Because if only the conventional DIN/ISO procedures using linear and cyclical statements mounted on conventional machine tools are used, the accuracy requirements of μ and the safety requirements for the machining process cannot be met in the case of overall grinding such as crankshaft. To this end, JUNKER's developers have taken the lead (in early 2001) to implement an OPC-server that can incorporate grinding-specific cycles into an intelligent operator interface for performing control functions. The server can be called by the OPC-Client of the ProTool/Pro system software so that NC-data can also be processed. The advantage of this design is that there is already an OPC-server in the standard configuration of the Sinumerik 840D system used in many machine types. Previous page next page Basin Faucet,Wash Basin Faucet,Jaquar Basin Tap,Kitchen Basin Tap WENZHOU HUAGUAN SANITARY WARE CO,.LTD , https://www.wzhuaguan.com
